DESCRIPTION

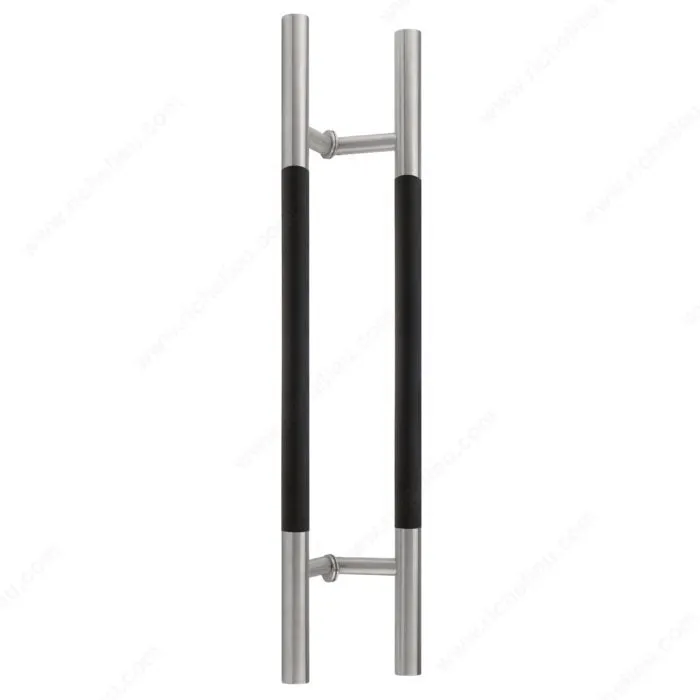

Wooden handle
Handle can be used on doors with a hinged opening. Its modern and sophisticated design will add a personal touch to your commercial development projects.
ADVANTAGES AND BENEFITS
The black wooden handle provides a refined and versatile feature that is suitable for all environments. The handle can be installed either on a glass or wood door.
TECHNICAL SPECIFICATIONS
Product № 705362432OSB170
Color/Finish Black, Stainless Steel

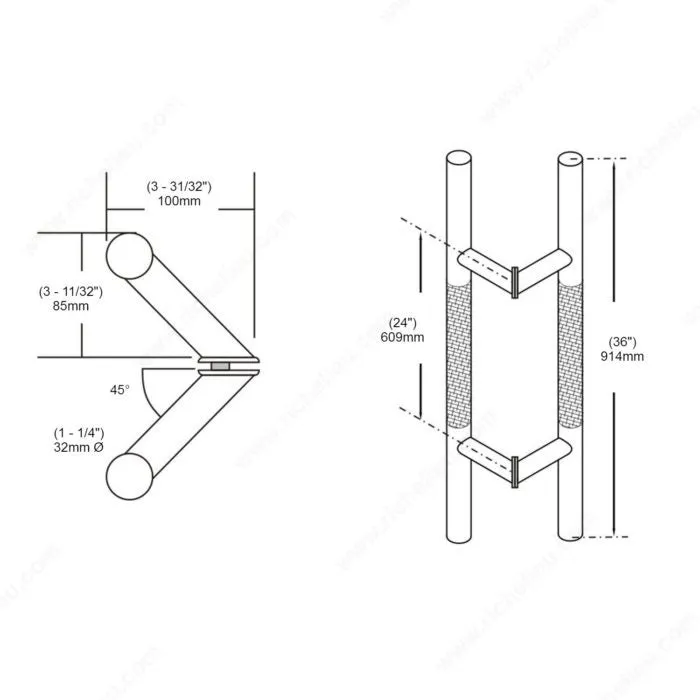

Center to Center Drilling (Spacing) 24 in
Diameter 32 mm
Door Type Glass, Wood, Architectural
Glass Thickness 10 to 12 mm
Door Thickness 35 to 55 mm
Height 36 in
Projection 85 mm
Material Stainless Steel: 304, Wood
Type Round
Washers Diameter 41 mm
Usage Sliding Door, Hinge Door, Commercial Door
Milling Diameter 12 mm
Function Offset Pull Handle
Screw/Nail Included, M8
APPLICATION
Ideal for offices, conference rooms, exhibition halls and shopping centers
INCLUDED PRODUCT(S)
Installation hardware for mounting on glass and wood included
IMPORTANT INFORMATION
This illustration is provided for visual reference only. Actual product may vary. Order hardware before starting the job. The manufacturer reserves the right to change product and information without notice. Always follow the instructions inside the package.
Installation must always be done by qualified personnel. Make sure that the product is properly installed using suitable fixtures on the support material.
Installation must always be done by qualified personnel. Make sure that the product is properly installed using suitable fixtures on the support material.
