Wooden Camera Ultra Handle Kit Overview
- 1Description
- 2Wooden Camera Ultra Handle Extension (5")
- 3Wooden Camera Ultra Handle Extension (1")
- 4Wooden Camera Rear Ultra Handle Connector for Sony VENICE
- 5Wooden Camera Front Ultra Handle Connector for Sony VENICE
- 6Wooden Camera T-Handle Hex Wrench (3/16")

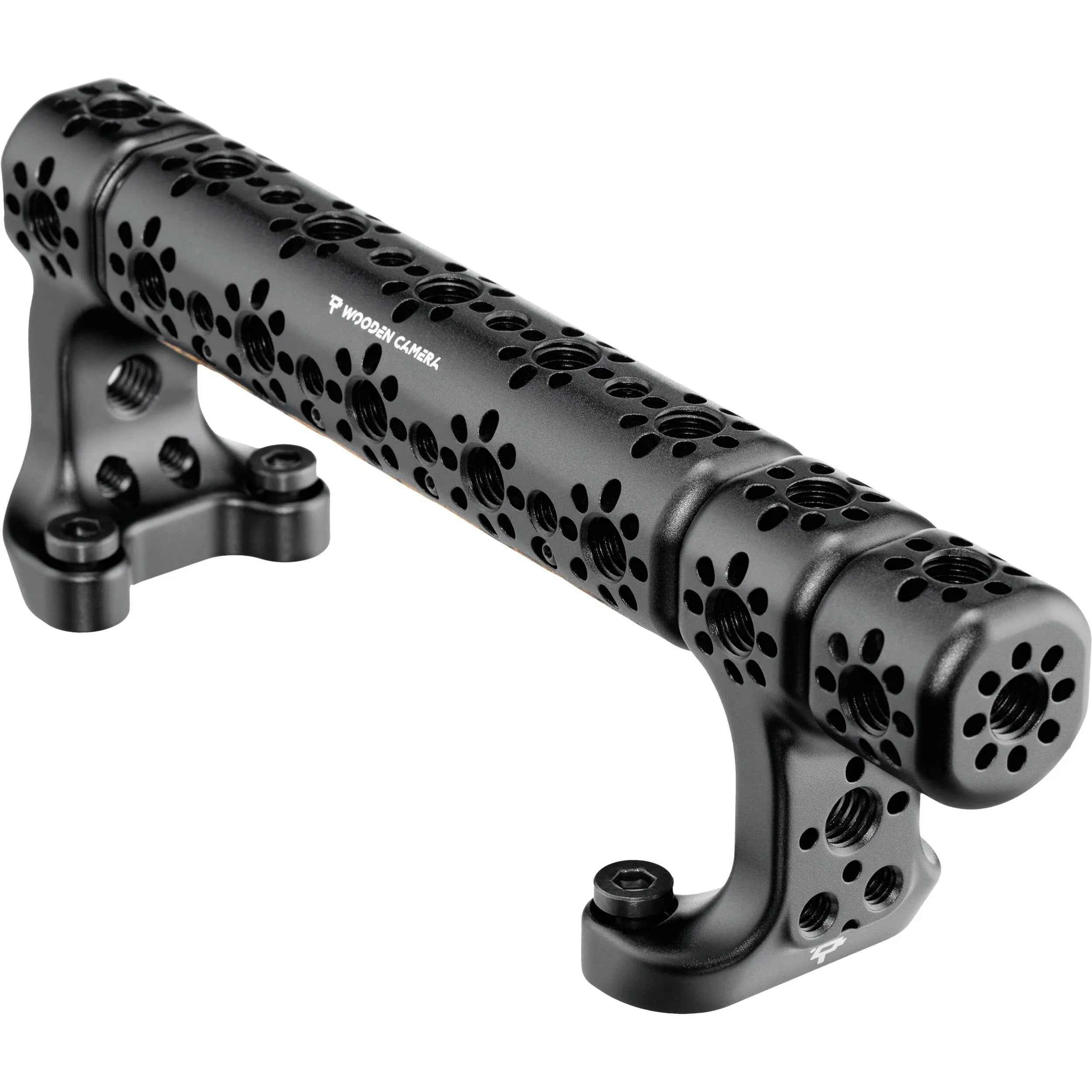

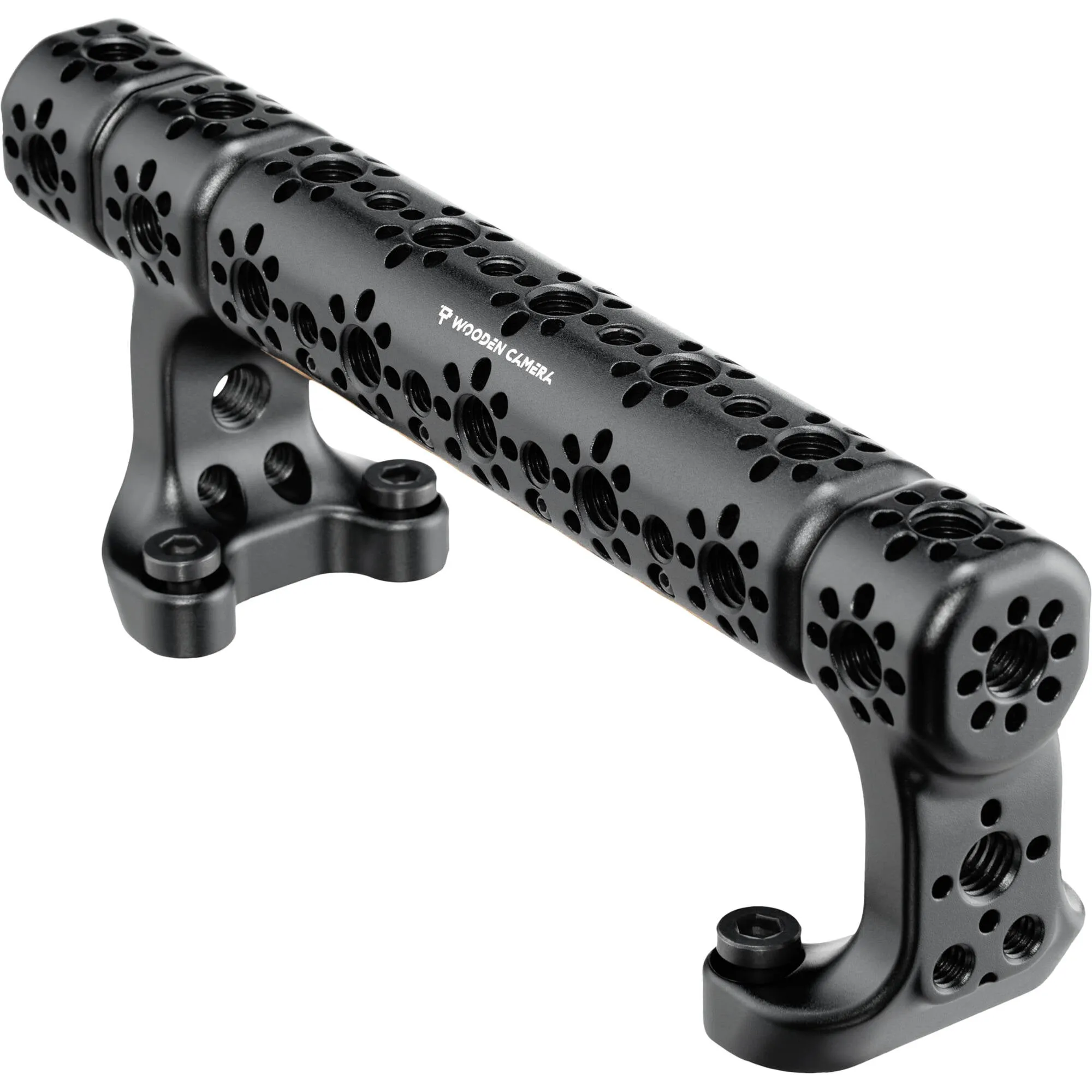

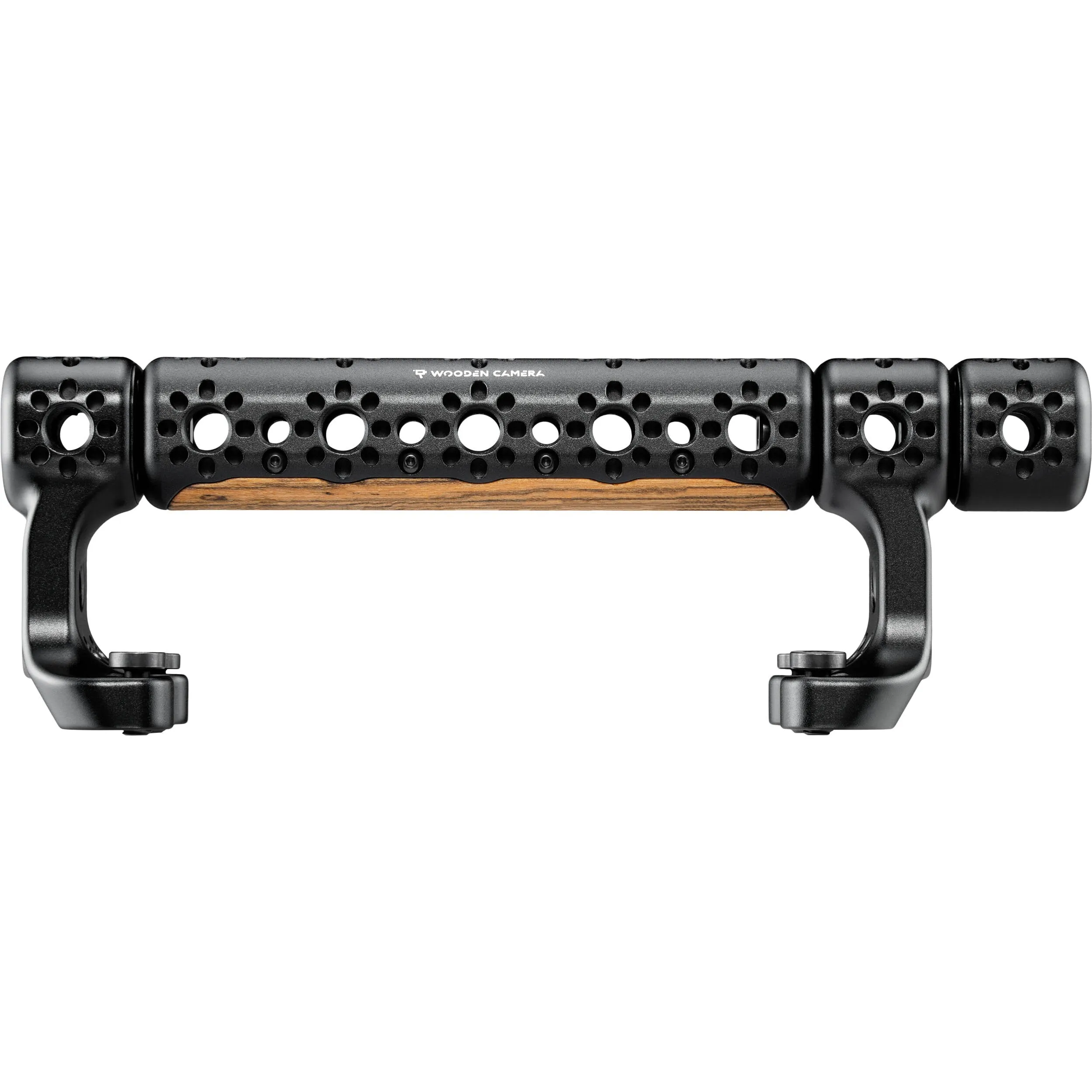

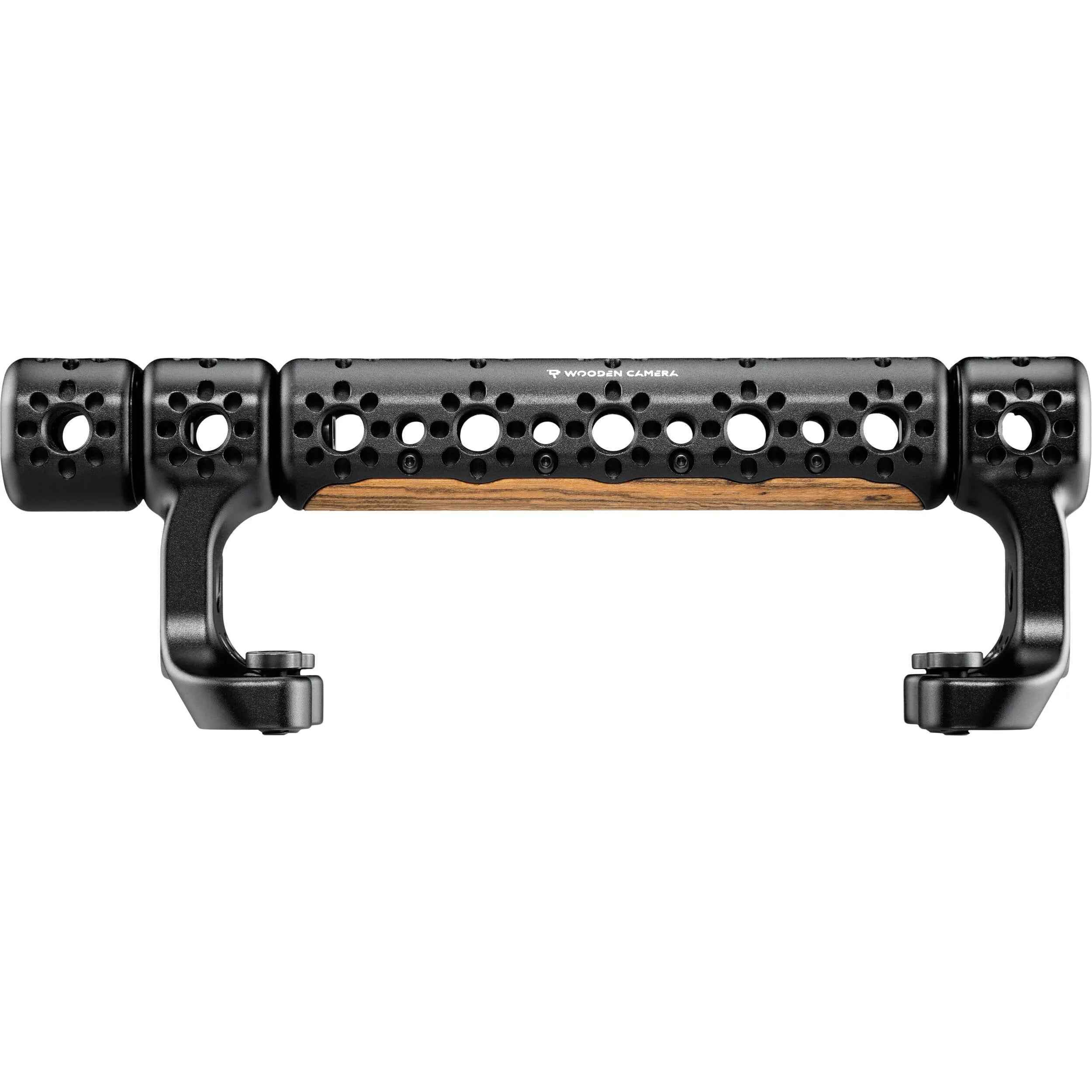

This Ultra Handle Standard Kit from Wooden Camera combines modular components to create a custom-configurable handle for your Sony VENICE series camera rig. Included in the standard kit is one 5" extension, one 1" extension, a front connector, and a rear connector. Various mounting threads and 3/8"-16 screws secure each part to one another along with the included Allen key. Four mounting screws on the connectors attach the 8" assembled handle to your camera's top plate.
Create a handle that best suits your Sony VENICE series camera rig using this 5" Ultra Handle Extension from Wooden Camera thanks to its modular design. A 3/8"-16 screw on one end of the extension can attach it to separately available connectors or other extension pieces. Multiple anti-twist 3/8"-16 and 1/4"-20 threads allow you to integrate articulating arms and on-camera monitors of your choice. A Bocote hardwood insert at the bottom of the extension offers an ergonomic handgrip. The pass-through design of the threads allows you to tighten the screw with an Allen key.
Create a handle that best suits your Sony VENICE series camera rig using this 1" Ultra Handle Extension from Wooden Camera thanks to its modular design. A 3/8"-16 screw on one end of the extension can attach it to separately available connectors or other extension pieces. Three anti-twist 3/6"-16 threads allow you to integrate articulating arms with smaller accessories of your choice. The pass-through design of the threads allows you to tighten the screw with an Allen key.
Create a handle that best suits your Sony VENICE series camera rig using this Rear Ultra Handle Connector from Wooden Camera thanks to its modular design. Attach this connector to the rear of your Sony VENICE top plate using the two mounting screws at the base. A 3/8"-16 screw and multiple anti-twist 3/8"-16 threads can attach it to separately available extension pieces. Two 1/4"-20 threads allow you to integrate additional accessories of your choice.
Create a handle that best suits your Sony VENICE series camera rig using this Front Ultra Handle Connector from Wooden Camera thanks to its modular design. Attach this connector to the front of your Sony VENICE top plate using the two mounting screws at the base. Multiple anti-twist 3/8"-16 threads can attach it to separately available extension pieces. Two 1/4"-20 threads allow you to integrate additional accessories of your choice.
This 7" steel alloy 3/16" Hex Wrench from Wooden Camera is compatible with video and audio components using a 3/16" hex screw. It features a rust-resistant finish and a comfortable vinyl T-handle for enhanced torque.

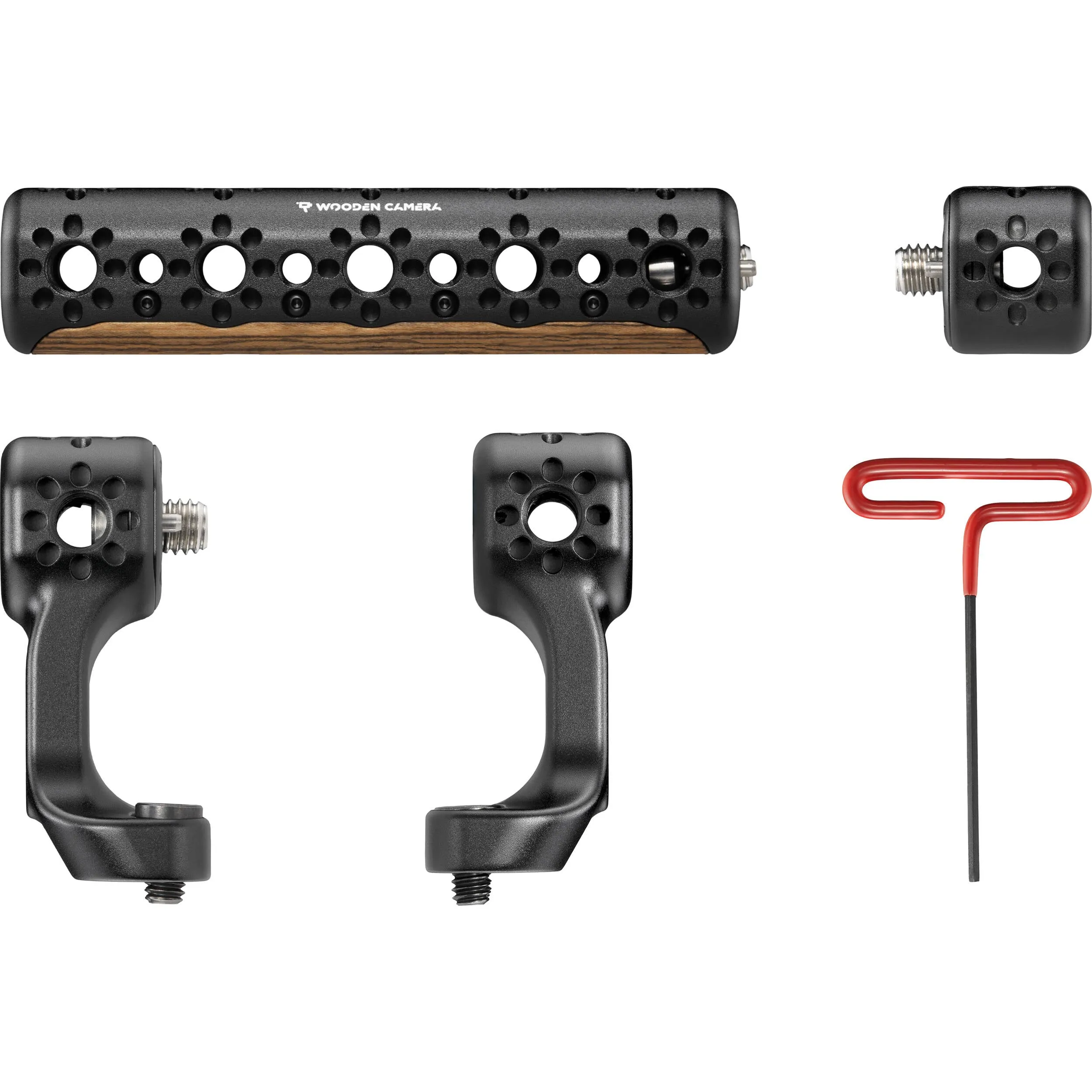

In the Box
- Wooden Camera Ultra Handle Extension (5")
- Limited 1-Year Manufacturer Warranty
- Wooden Camera Ultra Handle Extension (1")
- Limited 1-Year Manufacturer Warranty
- Wooden Camera Rear Ultra Handle Connector for Sony VENICE
- Limited 1-Year Manufacturer Warranty
- Wooden Camera Front Ultra Handle Connector for Sony VENICE
- Limited 1-Year Manufacturer Warranty
- Wooden Camera T-Handle Hex Wrench (3/16")
- Limited 1-Year Manufacturer Warranty
- Description
- Wooden Camera Ultra Handle Extension (5")
- Wooden Camera Ultra Handle Extension (1")
- Wooden Camera Rear Ultra Handle Connector for Sony VENICE
- Wooden Camera Front Ultra Handle Connector for Sony VENICE
- Wooden Camera T-Handle Hex Wrench (3/16")
Wooden Camera Ultra Handle Extension (5") Specs
| Environmental Protection | No |
| Mounting | 11 x 3/8"-16 Thread 8 x 1/4"-20 Thread 1 x 3/8"-16 Screw |
| Color | Black / Woodgrain |
| Material of Construction | Bocote Hardwood |
| Dimensions | 5" / 12.7 cm (Length) 5.4 x 1.2 x 1.2" / 136 x 30 x 30 mm (Total Dimensions) |
| Weight | 3.9 oz / 110.5 g |
| Package Weight | 0.255 lb |
| Box Dimensions (LxWxH) | 5.1 x 1.5 x 1.2" |
Wooden Camera Ultra Handle Extension (1") Specs
| Environmental Protection | No |
| Mounting | 3 x 3/8"-16 Thread 1 x 3/8"-16 Screw |
| Color | Black |
| Dimensions | 1" / 2.5 cm 1.4 x 1.2 x 1.2" / 34.5 x 30 x 30 mm (Total Dimensions) |
| Weight | 1.3 oz / 36.5 g |
| Package Weight | 0.1 lb |
| Box Dimensions (LxWxH) | 2.4 x 1.45 x 1.2" |
Wooden Camera Rear Ultra Handle Connector for Sony VENICE Specs
| Compatibility | Sony VENICE / VENICE 2 / VENICE Rialto / VENICE Rialto 2 |
| Environmental Protection | No |
| Mounting | 5 x 3/8"-16 Thread 2 x 1/4"-20 Thread 1 x 3/8"-16 Screw 2 x Mounting Screw |
| Color | Black |
| Dimensions | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
| Package Weight | 0.215 lb |
| Box Dimensions (LxWxH) | 3 x 2 x 1.3" |
Wooden Camera Front Ultra Handle Connector for Sony VENICE Specs
| Compatibility | Sony VENICE / VENICE 2 / VENICE Rialto / VENICE Rialto 2 |
| Environmental Protection | No |
| Mounting | 6 x 3/8"-16 Thread 2 x 1/4"-20 Thread 2 x Mounting Screw |
| Color | Black |
| Dimensions | Not Specified by Manufacturer |
| Weight | Not Specified by Manufacturer |
| Package Weight | 0.19 lb |
| Box Dimensions (LxWxH) | 3 x 1.9 x 1.3" |
Wooden Camera T-Handle Hex Wrench (3/16") Specs
| Size | 3/8" Hex |
| Color | Red / Silver |
| Material of Construction | Steel Alloy, Vinyl |
| Dimensions | 7.1 x 4.1 x 0.4" / 180.34 x 104.14 x 10.16 mm |
| Weight | 3.2 oz / 91 g |
| Package Weight | 0.155 lb |
| Box Dimensions (LxWxH) | 7.25 x 3.95 x 0.35" |
